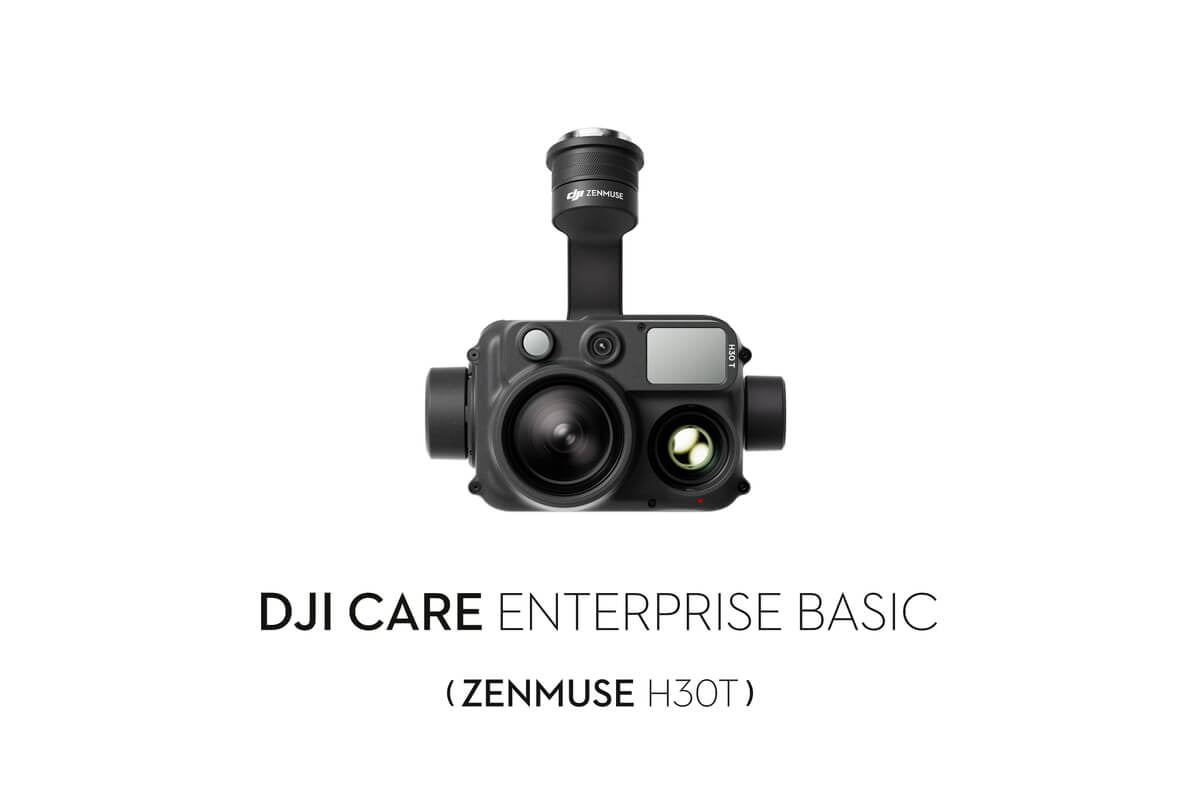

DJI Zenmuse H30T SP with DJI Care Enterprise Basic

• 1 x Zenmuse H30T
• 1 x Lens cap
• 1 x MicroSD card (64GB)
• 1 x Storage case
• 1 x Lens cleaning cloth

• Product Name

• Zenmuse H30 Series

• Dimensions

• 170×145×165 mm (L×W×H)

• Weight

• 920±5 g

• Power

• H30: 26 W
  H30T: 28 W

• Ingress Protection Rating

• IP54

  Under controlled laboratory conditions, it can achieve an IP54 protection rating by IEC60529 standards. The IP rating is not permanently effective and may decrease due to product wear and tear.

• Supported Aircraft

• Matrice 400
  Matrice 350 RTK
  Matrice 300 RTK (requires DJI RC Plus)

Environment

• Operating Temperature

• -20° to 50° C (-4° to 122° F)

• Storage Temperature

• -20° to 60° C (-4° to 140° F)

Gimbal

• Stabilization System

• 3-axis (tilt, roll, pan)

• Angular Vibration Range

• Hover: ±0.002°
  Flight: ±0.004°

• Mounting

• Detachable DJI SKYPORT

• Mechanical Range

• Tilt: -132.5° to +73°
  Roll: ±60°
  Pan: ±328°
  (Structural limit, not controllable range)

• Controllable Range

• Tilt: -120° to +60°
  Pan: ±320°

• Operation Mode

• Follow/Free/Re-center

Zoom Camera

• Sensor

• 1/1.8-inch CMOS, Effective Pixels: 40 MP

• Lens

• Actual Focal Length: 7.1-172 mm (Equivalent focal length: 33.4-809.3 mm)
  Aperture: f/1.6-f/5.2
  DFOV: 66.7°-2.9°

• Focus Mode

• MF, AFC, AFS

• Exposure Mode

• Manual, Auto

• Exposure Compensation

• ±3.0 (1/3 increments)

• Metering Mode

• Spot Metering, Average Metering

• AE Lock

• Supported

• Electronic Shutter Speed

• 1/8000-2 s

• ISO Range

• Single Shot: 100-25600
  Night Scene: 100-819200

• Video Resolution

• Single Shot: 3840×2160@30fps, 1920×1080@30fps
  Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps

• Video Format

• MP4

• Video Subtitles

• Supported

• Video Codec and Bit Rate Strategy

• H.264, H.265
  CBR, VBR

• Max Photo Size

• 7328×5496, 3664×2748

• Photo Format

• JPG

Wide-Angle Camera

• Sensor

• 1/1.3-inch CMOS, Effective Pixels: 48 MP

• Lens

• Actual Focal Length: 6.72 mm (Equivalent focal length: 24 mm)
  Aperture: f/1.7
  DFOV: 82.1°

• Focus Mode

• MF, AFC, AFS

• Exposure Mode

• Manual, Auto

• Exposure Compensation

• ±3.0 (1/3 increments)

• Metering Mode

• Spot Metering, Average Metering

• AE Lock

• Supported

• Electronic Shutter Speed

• 1/8000-2 s

• ISO Range

• Single Shot: 100-25600
  Night Scene: 100-409600

• Video Resolution

• Single Shot: 3840×2160@30fps, 1920×1080@30fps
  Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps

• Video Format

• MP4

• Video Subtitles

• Supported

• Video Codec and Bit Rate Strategy

• H.264, H.265
  CBR, VBR

• Max Photo Size

• 8064×6048, 4032×3024

• Photo Format

• JPG

Infrared Thermal Camera (H30T)

• Thermal Imager

• Uncooled VOx Microbolometer

• Lens

• Focal Length: 24 mm (equivalent focal length: 52 mm)
  Aperture: f/0.95
  DFOV: 45.2°

• Digital Zoom Equivalent

• 32×

• Video Resolution

• 1280×1024@30fps

• Video Format

• MP4

• Video Subtitles

• Supported

• Video Codec and Bit Rate Strategy

• H264, H265
  CBR, VBR

• Photo Resolution

• 1280×1024

• Photo Format

• R-JPEG

• Pixel Pitch

• 12 μm

• Spectral Band

• 8-14 μm

• Noise Equivalent Temperature Difference (NETD)

• ≤ 50 mk@f/1.0

• Temperature Measurement Method

• Spot Measurement, Area Measurement, Center Point Temperature Measurement

• Temperature Measurement Range

• High Gain: -20° to 150° C (-4° to 302° F), -20° to 450° C (-4° to 842° F) (With Infrared Density Filter)
  Low Gain: 0° to 600° C (32° to 1112° F), 0° to 1600° C (32° to 2912° F) (With Infrared Density Filter)

• Temperature Alert

• Supported

• Sun Burn Protection

• Supported

• FFC

• Auto, Manual

• Palette

• White Hot, Black Hot, Tint, Iron Red, Rainbow 1, Rainbow 2, Medical, Arctic, Fulgurite, Hot Iron

Laser Range Finder

• Wavelength

• 905 nm

• Measurement Range

• 3-3000 m
  Range for Common Objects: Grasslands 2000 m, woodlands 1900 m, road surfaces 1700 m‌*

  The measurement range may vary based on the material and shape of the tested object as well as the impact of gimbal angle, environmental light, and weather conditions such as rain or fog. If a laser pulse hits multiple targets, its energy is dispersed, which may reduce the measurable distance.
  * Test conditions: Flat surface subject, subject size exceeding the laser beam diameter, atmospheric visibility of 23 km (shorter range in clear conditions compared with overcast), laser impinges at an oblique angle (with an angle of incidence of approx. 0.2 radians).

• Measurement Accuracy

• ≤ 500 m: ±(0.2 m+measurement distance×0.15%)
  ‌> 500 m: ±1.0 m

• Laser Spot Size

• @100 m: approx. 50×450 mm
  @1000 m: approx. 450×4500 mm

• Safety Regulation Level

• Class 1

• Accessible Emission Limit (AEL)

• 260 nJ

• Reference Aperture

• 18 mm

• Max Laser Pulse Emission Power Within 5 Nanoseconds

• 52 W

NIR Auxiliary Light

• Wavelength

• 850 nm

• FOV

• 4.6±0.6° (Round)

• Safety Regulation Level

• Class 1

• Illumination Range

• @100 m: Approx. 8m diameter circle

Special Features

• Hybrid Optical Zoom

• 34×

• Max Zoom

• 400×

• Link Zoom

• Supported

• Click to Aim

• Supported

• High-Res Grid Photo

• Supported

• Night Scene

• Supported

• Timestamp

• Supported

• Smart Capture

• Supported

• Video Pre-Recording

• Supported

• UHR Infrared Image

• Supported

Data Storage

• Supported microSD Cards

• U3/Class10/V30 or above is required, or use a memory card from the recommended list.

• Supported File System

• exFAT

• Recommended microSD Cards

• Lexar 1066x V30 A2 64GB/128GB/256GB/512GB microSDXC
  Kingston CANVAS GO! Plus V30 A2 64GB/128GB/256GB/512GB microSDXC

  Zenmuse H30 supports the Security Code function. Go to Data and Privacy in DJI Pilot 2 and set the code to encrypt the microSD card installed on the camera. Download the DJI Decrypt Tool from the DJI official website to decrypt the microSD card on a Windows computer and access the card content.

Post-Processing Software

• Mapping Software

• DJI Terra, DJI FlightHub 2

• Infrared Analysis Software

• DJI Thermal Analysis Tool 3

The DJI Zenmuse H30T typically comes with a standard12-month manufacturer warrantyfor the gimbal and camera. However, it is often bundled withDJI Care Enterprise(Basic or Plus), which provides extended coverage for 1 or 2 years, including coverage for water damage, collision, and, in some cases, offering replacement units to ensure operational continuity.DJI Ferntech +2Key Warranty & Service Details:

• Standard Coverage: 12 months for the gimbal/camera, with 3 months for accessories like the storage case.
• Extended Protection (Optional/Bundled): 2-year DJI Care Enterprise Basic provides comprehensive, long-term coverage against accidents.
• Support: As an enterprise product, it is designed for demanding industrial, inspection, and public safety applications. DJI Ferntech +2

It is highly recommended to confirm if your purchase includes theBasicorPlusCare plan fromCanselorDrone Fly BDas it dramatically affects the service terms, such asDJI Ferntech's12-month warranty. Check officialDJI Enterprise Specsfor full hardware details.

What drone platforms are compatible with the Zenmuse H30 Series?

‌Matrice 350 RTK and Matrice 300 RTK. The only compatible remote controller is DJI RC Plus. Before using, please upgrade the firmware of the drone and remote controller to the latest version.

Onto which gimbal port can I mount a Zenmuse H30 Series payload?

Either of the Zenmuse H30 Series payloads can be mounted onto any gimbal port on the Matrice 350 RTK or Matrice 300 RTK.

What are the differences between ‌the Zenmuse H30 Series and the H20 Series?

1. Enhanced visible light capabilities: Supports up to 34× optical zoom and 400× digital zoom.

‌2. Improved infrared thermal camera: Resolution increased from 640×512 to 1280×1024; features High-Res mode for better observation of objects with small temperature differences; expanded temperature measurement range from -20° to 1600° C (-4° to 2912° F).*

3. Enhanced night scene capabilities, with adjustable frame rates of 25fps, 15fps, and 5fps; and features an NIR auxiliary light.

4. Extended laser range finding range up to 3000 meters.‌‌

5. Supports Smart Capture.

‌6. Supports electronic dehazing.

7. Provides video foreground stabilisation, enhancing efficiency in operations such as powerline inspections.‌

What is the new pre-recording feature of the Zenmuse H30 Series? What is it for?

Pre-recording is a feature that allows the device to cache a segment of video for a set duration before the user starts recording. When recording begins, the cached content is included in the video, preventing excessive use of microSD card space.

Purpose: With pre-recording enabled, even if recording starts after an event has begun, the device can save the moments before the recording started onto the microSD card, ensuring that potentially critical information isn't missed.

What are the application scenarios of the Zenmuse H30 Series?

The products are suitable for a wide range of fields, including but not limited to geothermal inspection, firefighting and search and rescue, forest fire prevention, wildlife protection, power line inspection, oil and gas inspection, traffic law enforcement, facility inspection, and infrastructure inspection.

What is the Zenmuse H30T's Infrared Density Filter for?

It extends the thermal imaging module's temperature measurement range to 0° to 1600° C (32° to 2912° F), allowing for more effective temperature variation assessment and rapid locating of high-temperature points.
