DJI Zenmuse H30 SP with DJI Care Enterprise Plus
- Regular price $8,506.00
Further and Clearer Vision
Enhanced Night Vision
Smarter Multi-Scenario Operations
More Reliable Information Sync and Retention
Superior Environmental Adaptability
Vendor: DJI Shop
Type:
Sku: DJIZMH30SPLUS
Guarantee safe checkout

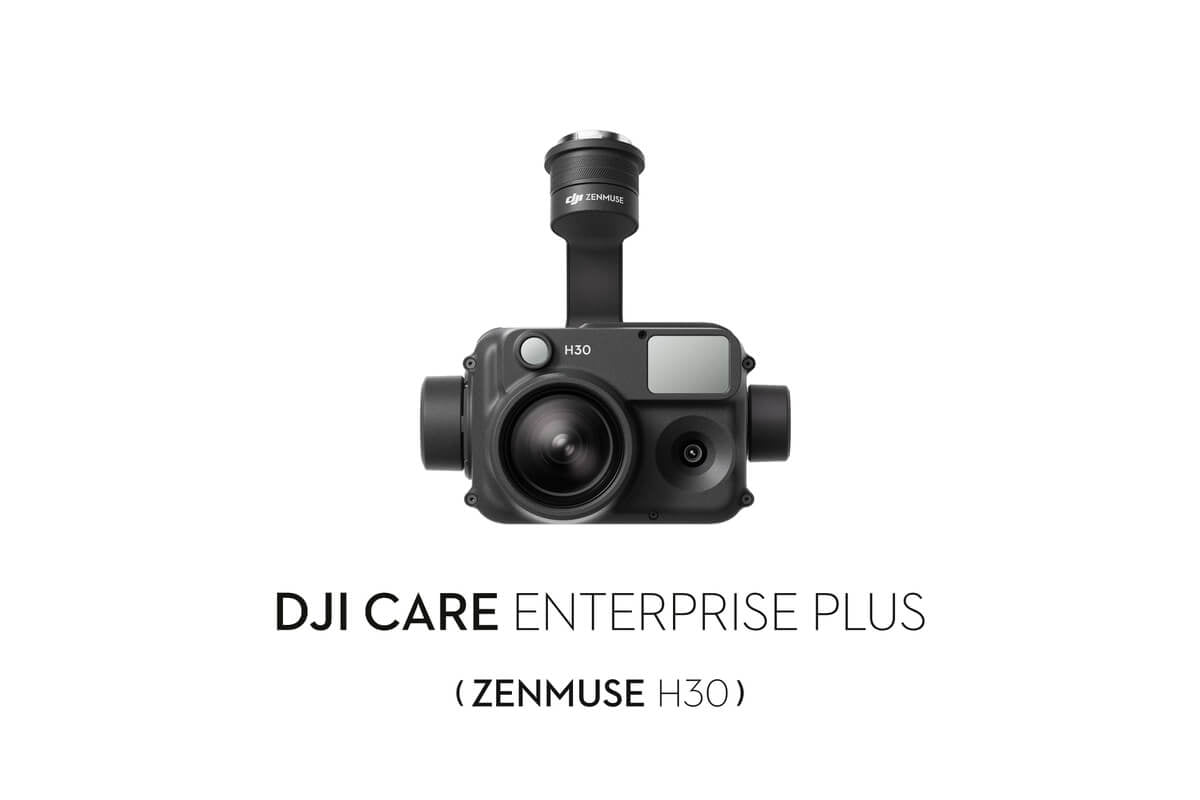

DJI Zenmuse H30 SP with DJI Care Enterprise Plus
$8,506.00
Renew your DJI Care Enterprise Plus, and enjoy another year of unlimited free repairs within the coverage limit, an official warranty, and multiple exclusive benefits.
- 1 x DJI Zenmuse H30
- 1 x Lens Cap
- 1 x Storage Case
- 1 x Lens Cleaning Cloth
General
Product Name
- Zenmuse H30 Series
Dimensions
- 170×145×165 mm (L×W×H)
Weight
- 920±5 g
Power
- H30: 26 W
H30T: 28 W Ingress Protection Rating
- IP54
Under controlled laboratory conditions, it can achieve an IP54 protection rating by IEC60529 standards. The IP rating is not permanently effective and may decrease due to product wear and tear. Supported Aircraft
- Matrice 400
Matrice 350 RTK
Matrice 300 RTK (requires DJI RC Plus)
Environment
Operating Temperature
- -20° to 50° C (-4° to 122° F)
Storage Temperature
- -20° to 60° C (-4° to 140° F)
Gimbal
Stabilization System
- 3-axis (tilt, roll, pan)
Angular Vibration Range
- Hover: ±0.002°
Flight: ±0.004° Mounting
- Detachable DJI SKYPORT
Mechanical Range
- Tilt: -132.5° to +73°
Roll: ±60°
Pan: ±328°
(Structural limit, not controllable range) Controllable Range
- Tilt: -120° to +60°
Pan: ±320° Operation Mode
- Follow/Free/Re-center
Zoom Camera
Sensor
- 1/1.8-inch CMOS, Effective Pixels: 40 MP
Lens
- Actual Focal Length: 7.1-172 mm (Equivalent focal length: 33.4-809.3 mm)
Aperture: f/1.6-f/5.2
DFOV: 66.7°-2.9° Focus Mode
- MF, AFC, AFS
Exposure Mode
- Manual, Auto
Exposure Compensation
- ±3.0 (1/3 increments)
Metering Mode
- Spot Metering, Average Metering
AE Lock
- Supported
Electronic Shutter Speed
- 1/8000-2 s
ISO Range
- Single Shot: 100-25600
Night Scene: 100-819200 Video Resolution
- Single Shot: 3840×2160@30fps, 1920×1080@30fps
Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps Video Format
- MP4
Video Subtitles
- Supported
Video Codec and Bit Rate Strategy
- H.264, H.265
CBR, VBR Max Photo Size
- 7328×5496, 3664×2748
Photo Format
- JPG
Wide-Angle Camera
Sensor
- 1/1.3-inch CMOS, Effective Pixels: 48 MP
Lens
- Actual Focal Length: 6.72 mm (Equivalent focal length: 24 mm)
Aperture: f/1.7
DFOV: 82.1° Focus Mode
- MF, AFC, AFS
Exposure Mode
- Manual, Auto
Exposure Compensation
- ±3.0 (1/3 increments)
Metering Mode
- Spot Metering, Average Metering
AE Lock
- Supported
Electronic Shutter Speed
- 1/8000-2 s
ISO Range
- Single Shot: 100-25600
Night Scene: 100-409600 Video Resolution
- Single Shot: 3840×2160@30fps, 1920×1080@30fps
Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps Video Format
- MP4
Video Subtitles
- Supported
Video Codec and Bit Rate Strategy
- H.264, H.265
CBR, VBR Max Photo Size
- 8064×6048, 4032×3024
Photo Format
- JPG
Infrared Thermal Camera (H30T)
Thermal Imager
- Uncooled VOx Microbolometer
Lens
- Focal Length: 24 mm (equivalent focal length: 52 mm)
Aperture: f/0.95
DFOV: 45.2° Digital Zoom Equivalent
- 32×
Video Resolution
- 1280×1024@30fps
Video Format
- MP4
Video Subtitles
- Supported
Video Codec and Bit Rate Strategy
- H264, H265
CBR, VBR Photo Resolution
- 1280×1024
Photo Format
- R-JPEG
Pixel Pitch
- 12 μm
Spectral Band
- 8-14 μm
Noise Equivalent Temperature Difference (NETD)
- ≤ 50 mk@f/1.0
Temperature Measurement Method
- Spot Measurement, Area Measurement, Center Point Temperature Measurement
Temperature Measurement Range
- High Gain: -20° to 150° C (-4° to 302° F), -20° to 450° C (-4° to 842° F) (With Infrared Density Filter)
Low Gain: 0° to 600° C (32° to 1112° F), 0° to 1600° C (32° to 2912° F) (With Infrared Density Filter) Temperature Alert
- Supported
Sun Burn Protection
- Supported
FFC
- Auto, Manual
Palette
- White Hot, Black Hot, Tint, Iron Red, Rainbow 1, Rainbow 2, Medical, Arctic, Fulgurite, Hot Iron
Laser Range Finder
Wavelength
- 905 nm
Measurement Range
- 3-3000 m
Range for Common Objects: Grasslands 2000 m, woodlands 1900 m, road surfaces 1700 m*
The measurement range may vary based on the material and shape of the tested object as well as the impact of gimbal angle, environmental light, and weather conditions such as rain or fog. If a laser pulse hits multiple targets, its energy is dispersed, which may reduce the measurable distance.
* Test conditions: Flat surface subject, subject size exceeding the laser beam diameter, atmospheric visibility of 23 km (shorter range in clear conditions compared with overcast), laser impinges at an oblique angle (with an angle of incidence of approx. 0.2 radians). Measurement Accuracy
- ≤ 500 m: ±(0.2 m+measurement distance×0.15%)
> 500 m: ±1.0 m Laser Spot Size
- @100 m: approx. 50×450 mm
@1000 m: approx. 450×4500 mm Safety Regulation Level
- Class 1
Accessible Emission Limit (AEL)
- 260 nJ
Reference Aperture
- 18 mm
Max Laser Pulse Emission Power Within 5 Nanoseconds
- 52 W
NIR Auxiliary Light
Wavelength
- 850 nm
FOV
- 4.6±0.6° (Round)
Safety Regulation Level
- Class 1
Illumination Range
- @100 m: Approx. 8m diameter circle
Special Features
Hybrid Optical Zoom
- 34×
Max Zoom
- 400×
Link Zoom
- Supported
Click to Aim
- Supported
High-Res Grid Photo
- Supported
Night Scene
- Supported
Timestamp
- Supported
Smart Capture
- Supported
Video Pre-Recording
- Supported
UHR Infrared Image
- Supported
Data Storage
Supported microSD Cards
- U3/Class10/V30 or above is required, or use a memory card from the recommended list.
Supported File System
- exFAT
Recommended microSD Cards
- Lexar 1066x V30 A2 64GB/128GB/256GB/512GB microSDXC
Kingston CANVAS GO! Plus V30 A2 64GB/128GB/256GB/512GB microSDXC
Zenmuse H30 supports the Security Code function. Go to Data and Privacy in DJI Pilot 2 and set the code to encrypt the microSD card installed on the camera. Download the DJI Decrypt Tool from the DJI official website to decrypt the microSD card on a Windows computer and access the card content.
Post-Processing Software
Mapping Software
- DJI Terra, DJI FlightHub 2
Infrared Analysis Software
- DJI Thermal Analysis Tool 3
The DJI Zenmuse H30 series features comprehensive warranty options throughDJI Care Enterprise, offering either Basic or Plus coverage for accidental damage, including water exposure and collisions. Key options includeunlimited replacements within a coverage limit (Plus) or two replacements per year (Basic), with some packages offering 18-month service coverage.Cansel.ca +2Key Warranty Features for Zenmuse H30:
- DJI Care Enterprise Plus: Provides 1 year of comprehensive, unlimited replacements within the coverage limit, ensuring rapid recovery for enterprise operations, available on Cansel.ca.
- DJI Care Enterprise Basic: Offers up to two replacements per year, including protection against water damage and collisions.
- Service & Support: Official warranties cover the 5-in-1 sensor package (wide-angle, zoom, infrared, laser rangefinder, NIR light).
- Renewal: Plans can be renewed for an additional year if done before or within 15 days of expiration.
- Coverage Options: Renewed plans are available, such as the DJI Care Enterprise Basic (Zenmuse H30) and a Worry-Free Basic Combo from Drone Fly BD, which often features 18-month servicing warranties. Cansel.ca +4
These enterprise plans are designed for industrial applications like firefighting, search and rescue, and infrastructure inspection, minimizing downtime.
What drone platforms are compatible with the Zenmuse H30 Series?
Matrice 350 RTK and Matrice 300 RTK. The only compatible remote controller is DJI RC Plus. Before using, please upgrade the firmware of the drone and remote controller to the latest version.
Onto which gimbal port can I mount a Zenmuse H30 Series payload?
Either of the Zenmuse H30 Series payloads can be mounted onto any gimbal port on the Matrice 350 RTK or Matrice 300 RTK.
What are the differences between the Zenmuse H30 Series and the H20 Series?
1. Enhanced visible light capabilities: Supports up to 34× optical zoom and 400× digital zoom.
2. Improved infrared thermal camera: Resolution increased from 640×512 to 1280×1024; features High-Res mode for better observation of objects with small temperature differences; expanded temperature measurement range from -20° to 1600° C (-4° to 2912° F).*
3. Enhanced night scene capabilities, with adjustable frame rates of 25fps, 15fps, and 5fps; and features an NIR auxiliary light.
4. Extended laser range finding range up to 3000 meters.
5. Supports Smart Capture.
6. Supports electronic dehazing.
7. Provides video foreground stabilisation, enhancing efficiency in operations such as powerline inspections.
What is the new pre-recording feature of the Zenmuse H30 Series? What is it for?
Pre-recording is a feature that allows the device to cache a segment of video for a set duration before the user starts recording. When recording begins, the cached content is included in the video, preventing excessive use of microSD card space.
Purpose: With pre-recording enabled, even if recording starts after an event has begun, the device can save the moments before the recording started onto the microSD card, ensuring that potentially critical information isn't missed.
What are the application scenarios of the Zenmuse H30 Series?
The products are suitable for a wide range of fields, including but not limited to geothermal inspection, firefighting and search and rescue, forest fire prevention, wildlife protection, power line inspection, oil and gas inspection, traffic law enforcement, facility inspection, and infrastructure inspection.
What is the Zenmuse H30T's Infrared Density Filter for?
It extends the thermal imaging module's temperature measurement range to 0° to 1600° C (32° to 2912° F), allowing for more effective temperature variation assessment and rapid locating of high-temperature points.
