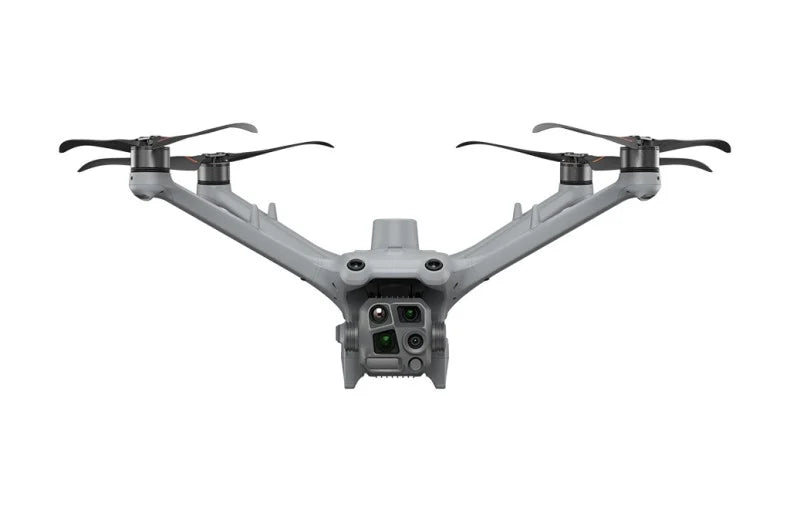

DJI Matrice 4TD Drone for DJI Dock 3 (includes DJI Plus Care)
- Regular price $10,859.00
Enterprise Thermal Drone With Automated Deployment
Extended Flight, IP55 Shield
Smart Features For Efficiency
Seamless Airborne Relay
Excels In Low Light
Obstacle Sensing For Safety
Includes DJI Care Plus
Vendor: DJI Shop
Type:
Sku: DJIM4TDPLUS
Guarantee safe checkout
DJI Matrice 4TD Drone for DJI Dock 3 (includes DJI Plus Care)
$10,859.00

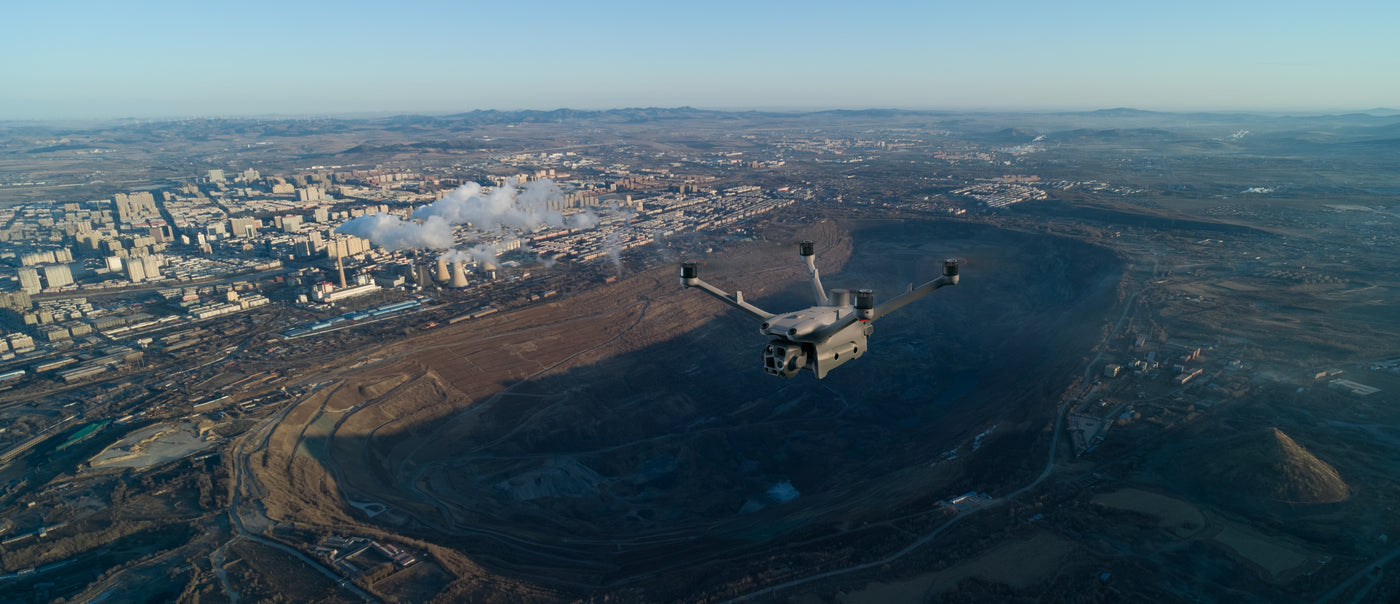

The DJI Matrice 4TD is a high-performance thermal drone designed for automated aerial missions in security, inspection and emergency response. Featuring a thermal camera, high-resolution visual sensor and integrated laser range finder, it delivers accurate, real-time data in all conditions. With up to 54 minutes of flight time, IP55 weather protection and full compatibility with DJI Dock 3, the Matrice 4TD enables 24/7 autonomous operations with minimal human input. Ideal for infrastructure monitoring, perimeter surveillance and industrial inspections, this drone is built to perform in the most demanding environments.
1 x DJI Matrice 4TD drone
1 x DJI Matrice 4D series battery
1 x DJI RC Plus 2 Enterprise remote controller
1 x DJI Matrice 4D series low-noise anti-ice spare propellers (pair)
1 x DJI 240W power adapter
1 x DJI Matrice 4D series 240W charging hub
1 x DJI Matrice 4D series storage case
1 x DJI Matrice 4 series carrying case strap
1 x Screwdriver set
1 x Screwdriver (for remote controller)
1 x USB-C to USB-C data cable
1 x USB-A to USB-C data cable
1 x DJI Power fast charge cable for drones
1 x Gimbal protector
1 x MicroSD card
6 x M2.5 propeller blade screws
6 x Rubber Washers (for Propellers)
4 x M1.6 aircraft cellular module compartment screws
Aircraft Overview
- Weight: 1850 g
- Max Takeoff Weight: 2090 g
- Dimensions: 377.7 × 416.2 × 212.5 mm
Includes battery, propellers, and microSD card. Actual weight may vary.
Wheelbase
- Diagonal: 498.5 mm
- Front (L-R): 383.0 mm
- Rear (L-R): 343.0 mm
- Front-Rear: 341.6 mm
Flight Performance
- Max Ascent Speed: 6 m/s (Normal), 10 m/s (Sport)
- Max Descent Speed: 6 m/s (Normal), 8 m/s (Sport)
- Max Speed:
Normal: 15 m/s (forward)
Sport: 21 m/s (forward)
- Wind Resistance: 12 m/s
- Max Takeoff Altitude: 6500 m
- Max Flight Time: 54 minutes
- Hover Time: 47 minutes
- Max Flight Distance: 43 km
- Operating Radius: 10 km
Flight Angles
- Max Pitch: 25° (Normal), 30° (Sport)
- Max Angular Velocity: 200°/s
Navigation & Accuracy
- GPS + BeiDou + Galileo + QZSS + GLONASS*
*GLONASS & QZSS supported with RTK module.
Hovering Accuracy
- Vertical: ±0.1 m (vision), ±0.5 m (GNSS), ±0.1 m (RTK)
- Horizontal: ±0.3 m (vision), ±0.5 m (GNSS), ±0.1 m (RTK)
- Operating Temperature: -20°C to 50°C
- Ingress Protection: IP55
- Motor: 2611
- Propellers: 1364F low-noise anti-ice
Camera System
Sensors
- Wide: 48 MP (1/1.3” CMOS)
- Medium Tele: 48 MP (1/1.3” CMOS)
- Tele: 48 MP (1/1.5” CMOS)
Lenses
- Wide: 24mm, f/1.7, FOV 82°
- Medium Tele: 70mm, f/2.8, FOV 35°
- Tele: 168mm, f/2.8, FOV 15°
- ISO: 100–25600 (Normal), up to 819200 (Night)
- Shutter: 2–1/8000 s
- Max Image Size: up to 8192 × 6144
Video
- 4K (3840×2160) @30fps
- FHD (1920×1080) @30fps
- Codec: H.264 / H.265
Zoom
- 16× optical (up to 112× hybrid)
Thermal Camera
- Resolution: 640 × 512
- Frame Rate: 30 Hz
- Temperature Range: -20°C to 500°C
- Accuracy: ±2°C or ±2%
Laser Rangefinder
- Max Range: 1800 m
- Accuracy: ±(0.2 + 0.0015D)
Gimbal
- 3-axis stabilization
- Tilt: -90° to +90°
- Max Control Speed: 100°/s
Sensing System
- Omnidirectional vision system
- 3D infrared sensor
Video Transmission
- System: DJI O4+ Enterprise
- Max Distance: 25 km (FCC), 12 km (CE)
- Live View: up to 1080p/30fps
- Latency: ~100 ms
Storage
- Supports U3 / V30 microSD cards
- Up to 512GB supported
Battery
- Capacity: 6768 mAh
- Voltage: 22.14 V
- Energy: 149.9 Wh
- Weight: 640 g
- Cycle Life: 400 cycles
Charging
- Temperature: 5°C to 45°C
- Supports low-temp self-heating
Power Adapter
- Input: 100–240 V AC
- Output: 240 W max
- USB-C: up to 65 W
The DJI Matrice 4TD, designed for the DJI Dock 3, typically comes with a2-year warranty from authorized dealers. It is a high-performance, enterprise-level drone designed for automated, persistent missions, featuring advanced imaging sensors, including a 4/3 CMOS wide-angle camera and a 640×512 thermal camera.RC Corner | UAE Official Drones Distributor
Key Warranty and Service Details:
- Coverage Duration: Generally 2 years for the DJI Matrice 4TD / DJI Dock 3 combo, often provided by specialized enterprise dealers like RC Corner | UAE Official Drones Distributor.
- Enterprise Protection: Coverage can be enhanced or extended via DJI Care Enterprise Plus, which provides options for unlimited free repairs within a specified coverage limit.
- Warranty Scope: The warranty generally covers manufacturing defects, but standard manufacturer warranties do not cover damage from misuse or accidents (covered under DJI Care Enterprise).
- International Support: As an enterprise product, specific coverage regions for DJI Care may apply.
How many versions does the DJI Matrice 4D Series have? What are the differences between them?
DJI Matice 4D Series currently includes two versions - DJI Matrice 4D and DJI Matrice 4TD.
DJI Matrice 4D is equipped with a 4/3 CMOS 20MP wide-angle camera, a 1/1.3-inch CMOS 48MP medium tele camera, a 1/1.5-inch CMOS 48MP tele camera, and a laser range finder, providing powerful imaging capabilities.
DJI Matrice 4TD is equipped with a 1/1.3-inch CMOS 48MP wide-angle camera, a 1/1.3-inch CMOS 48MP medium tele camera, a 1/1.5-inch CMOS 48MP tele camera, a infrared thermal camera, an NIR auxiliary light, and a laser range finder. It features powerful thermal imaging and low-light imaging capabilities.
What is the certification level of the DJI Matrice 4D Series in Europe?
The DJI Matrice 4D Series is C2 and C6 certified by the European Union Aviation Safety Agency (EASA).
What is the IP rating of the DJI Matrice 4D Series drones?
IP55.
Do cameras on DJI Matrice 4D Series support mapping without GCPs?
Only the 4/3 CMOS wide-angle camera on DJI Matrice 4D supports mapping without GCPs.
What is the difference between the DJI Matrice 4D Series and the Matrice 4 Series?
The DJI Matrice 4D Series has the following main differences compared to the Matrice 4 Series:
1. Supports IP55 protection rating.
2. Maximum flight time of 54 minutes.
3. Supports greater payload capacity.
4. Supports airborne relay, where one drone can fly high as a relay, addressing signal issues in mountainous terrains.
5. Arms of Matrice 4D Series drones are not foldable.
Why can the arms of the DJI Matrice 4D series be moved, and why are there visible gaps at the base of the arms?
The DJI Matrice 4D Series drones incorporate rotational dampers at the base of each arm to dampen arm vibration, ensuring reliable, long-time flight in various environments. The arms can rotate at a small angle, and visible gaps at the base of the arms are normal design characteristics.
Do the DJI Matrice 4D Series drones support manual flight with a remote controller?
Yes, they can link with DJI RC Plus 2 Enterprise for manual flight.
How do the DJI Matrice 4D Series drones perform linking for airborne relay operations?
After linking two drones with two remote controllers respectively, set the aircraft as the Main Aircraft (operating aircraft) on the DJI Pilot 2 app of the remote controller A, and set the aircraft as the Relay Aircraft on the DJI Pilot 2 app of the remote controller B. Wait for the two drones to automatically re-link. Once the linking is completed, you can check the connection topology status on the main page.
