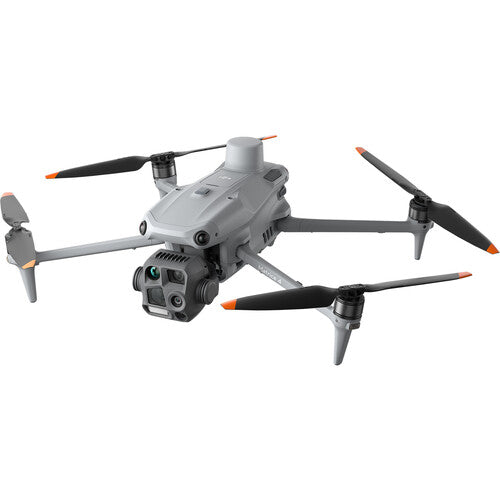

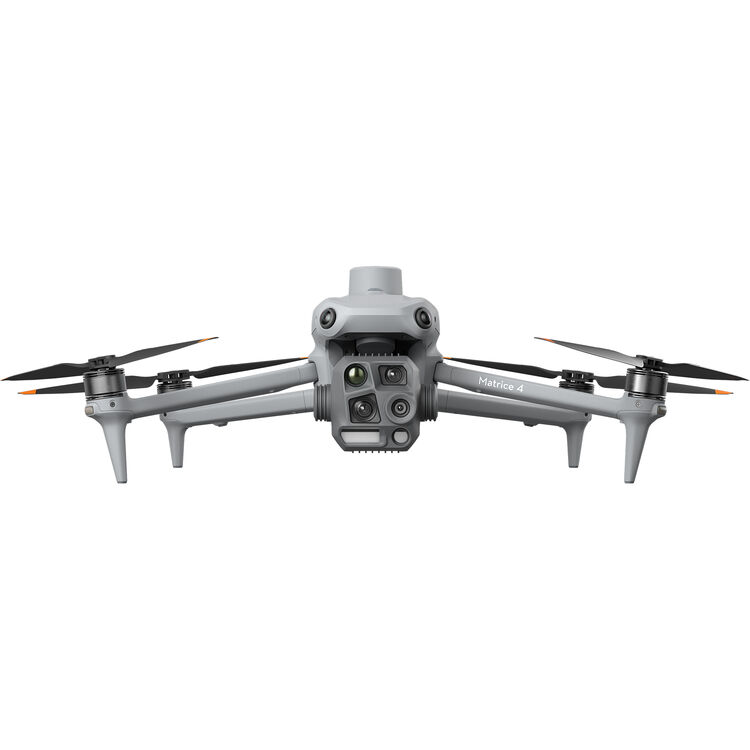

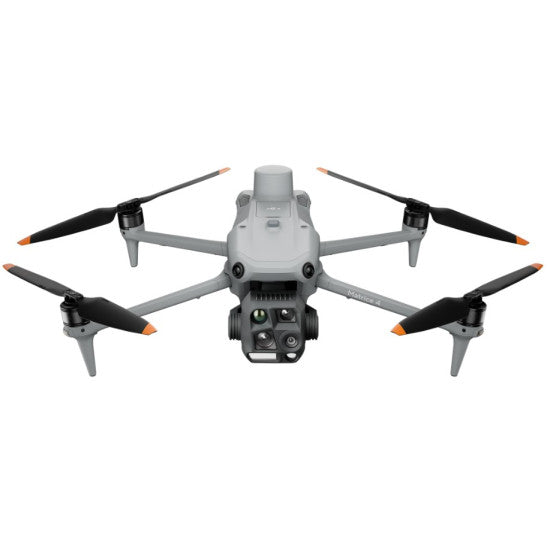

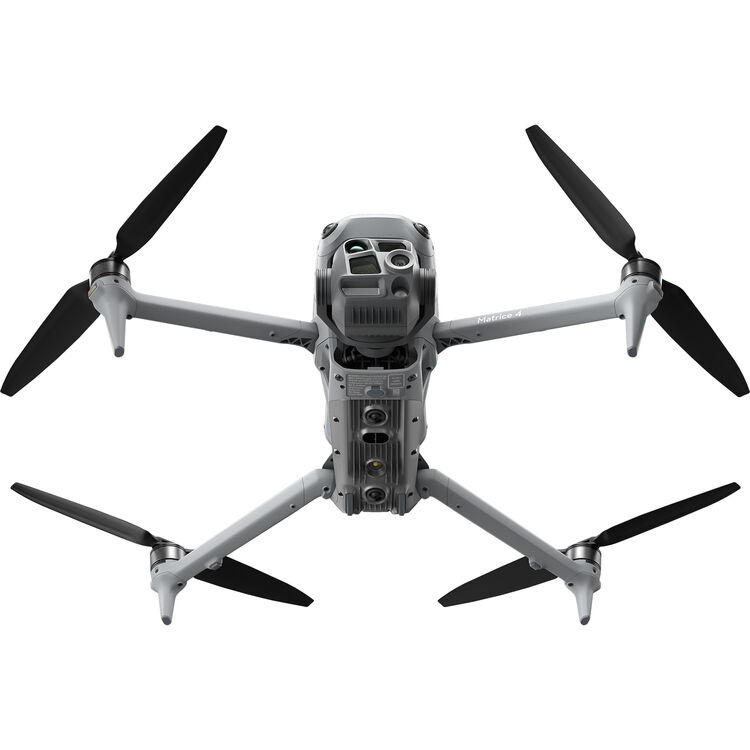

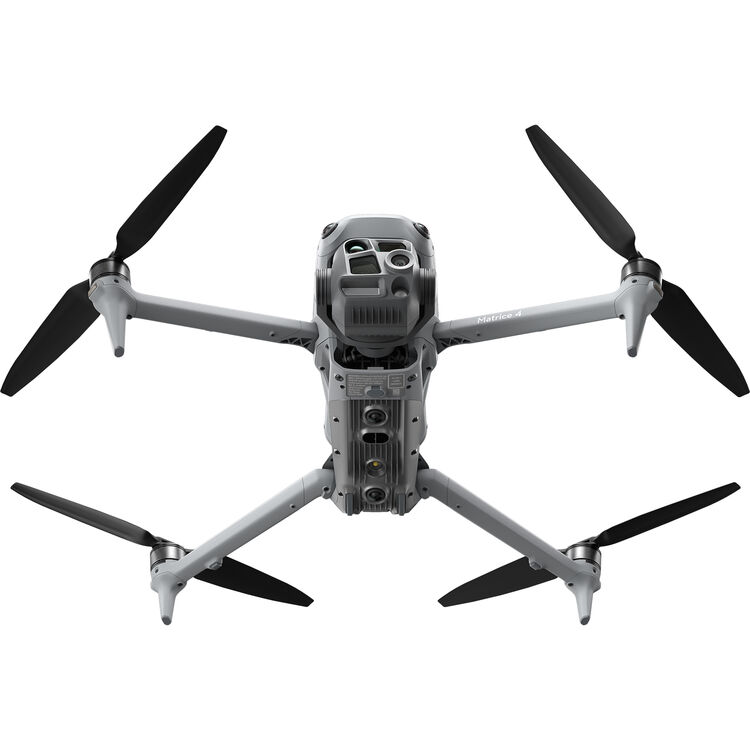

DJI Matrice 4T (including DJI Care Enterprise Plus)

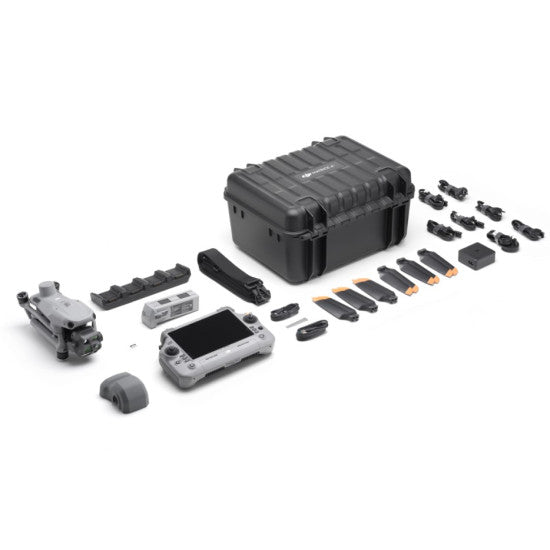

• 1 x DJI Matrice 4T drone
• 1 x DJI Matrice 4 series battery
• 1 x DJI RC Plus 2 Enterprise remote controller
• 1 x DJI 100W USB-C power adapter
• 1 x DJI Matrice 4 series charging hub
• 1 x MicroSD card
• 1 x DJI Matrice 4T gimbal protector
• 1 x DJI Cellular Dongle 2 pry bar
• 3 x DJI Matrice 4 series propellers
• 1 x 100W power adaptor AC cable
• 1 x USB-C to USB-C data cable
• 1 x USB-A to USB-C data cable

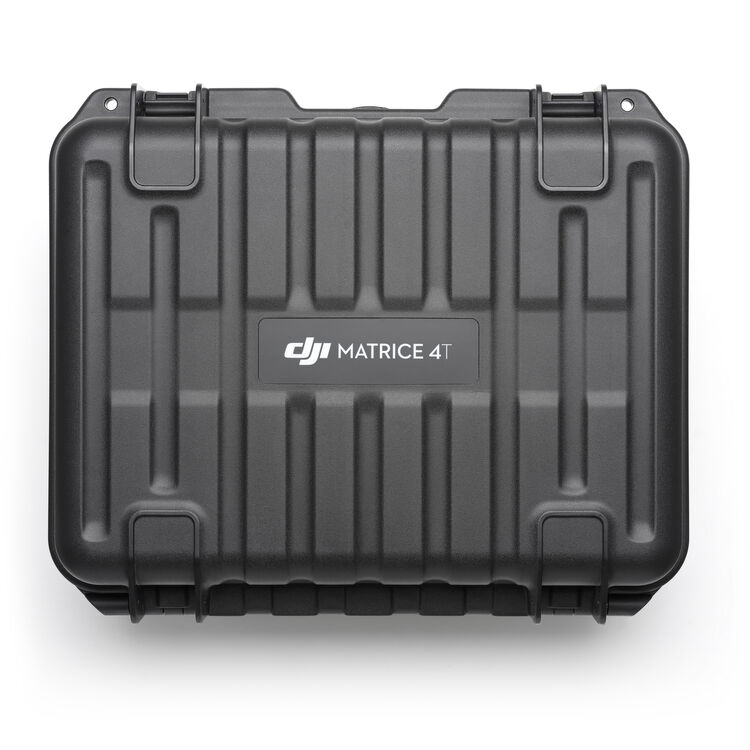

• 1 x DJI Matrice 4 series storage case
• 1 x DJI Matrice 4 series storage case shoulder strap

AIRCRAFT Takeoff Weight

Standard Propellers: 1420g
Low-Noise Propellers: 1430g

Dimensions

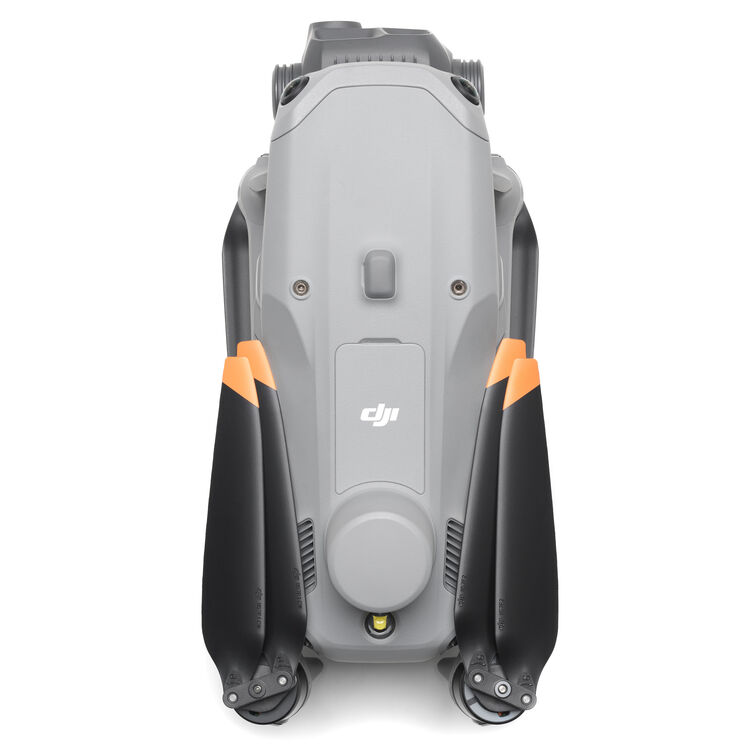

Folded: 260.6×113.7×138.4 mm (L×W×H)
Unfolded: 307.0×387.5×149.5 mm (L×W×H)

Maximum dimensions excluding propellers.

Max Ascent Speed

10 m/s

Max Descent Speed

8 m/s

Max Horizontal Speed (near sea level, no wind)

21 m/s flying forward, 18 m/s flying backward, 19 m/s flying sideways*

* No faster than 19 m/s with Sport mode in EU regions.

Max Takeoff Altitude

6000 m

Max Flight Time

49 min (standard propellers)
46 min (low-noise propellers)

Max Hovering Time

42 min (standard propellers)
39 min (low-noise propellers)

Max Flight Distance

35 km (standard propellers)
32 km (low-noise propellers)

Max Wind Speed Resistance

12 m/s*

* Max wind speed resistance during takeoff and landing.

Operating Temperature

-10℃ to 40℃ (14°F to 104°F)

Global Navigation Satellite System

GPS + Galileo + BeiDou + GLONASS*

* GLONASS is supported only when the RTK module is enabled.

Hovering Accuracy Range

±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK)

Internal Storage

N/A

CAMERA Image Sensor

Wide:
1/1.3-inch CMOS, Effective Pixels: 48 MP
Medium Tele Camera:
1/1.3-inch CMOS, Effective Pixels: 48 MP
Telephoto:
1/1.5-inch CMOS, Effective Pixels: 48 MP

Lens

DJI Matrice 4T
FOV: 82°
Equivalent Focal Length: 24 mm
Aperture: f/1.7
Focus: 1 m to ∞

Medium Tele Camera
FOV: 35°
Equivalent Focal Length: 70 mm
Aperture: f/2.8
Focus: 3 m to ∞

Tele camera
FOV: 15°
Equivalent Focal Length: 168 mm
Aperture: f/2.8
Focus: 3 m to ∞

ISO Range

Normal Mode: ISO 100 to ISO 25600

Night Scene Mode:
Matrice 4T:
Wide Camera: ISO 100 to ISO 409600
Midum Tele Camera: ISO 100 to ISO 409600
Tele Camera: ISO 100 to ISO 819200

Shutter Speed

Wide: 2-1/8000 s
Medium Telephoto: 2-1/8000 s
Telephoto: 2-1/8000 s

Max Image Size

Wide: 8064 × 6048
Medium Telephoto: 8064 × 6048
Telephoto: 8192 × 6144

Still Photography Modes

Wide:
Single: 12 MP/48 MP
Interval: 12 MP/48 MP
JPEG：0.7/1/2/3/5/7/10/15/20/30/60 s
Smart Shooting:12MP
Panorama: 12 MP (raw image);100 MP (stitched image)

Medium Tele Camera:
Single: 12 MP and 48 MP
Interval: 12 MP/48 MP
JPEG：0.7/1/2/3/5/7/10/15/20/30/60 s
Smart Shooting: 12MP

Telephoto:
Single: 12 MP and 48 MP
Interval: 12 MP/48 MP
JPEG：0.7/1/2/3/5/7/10/15/20/30/60 s
Smart Shooting：12MP

Photo Format

Wide: JPEG
Medium Tele Camera: JPEG
Telephoto: JPEG

Video Resolution

4K: 3840 × 2160@30fps
FHD: 1920 × 1080@30fps

Video Format

MP4 (MPEG-4 AVC/H.264)

Max Video Bitrate

H.264: 60Mbps
H.265: 40Mbps

Supported File System

exFAT

SENSINGSensing Type

Omnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft.

Operating Environment

Forward, Backward, Left, Right, and Upward:
Delicate texture on the surface, adequate light.

Downward:
The ground has rich textures and sufficient lighting conditions*, with a diffuse reflection surface and a reflectivity greater than 20% (such as walls, trees, people, etc.).

* Sufficient lighting conditions refer to an illuminance not lower than that of a nighttime city light scene.

VIDEO TRANSMISSIONVideo Transmission System

O4 Enterprise

Live View Quality

Remote Controller: 1080p/30fps

Operating Frequency

2.400-2.4835 GHz
2.400-2.4835 GHz
5.725-5.850 GHz
5.150-5.250 GHz (CE)

Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.

Transmitter Power (EIRP)

2.4 GHz: ≤33 dBm (FCC), ≤20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC), <30 dB (SRRC) , <14 dBm (CE)
5.15-5.25: < 23 dBm (FCC/CE)

Max Transmission Distance (unobstructed, free of interference)

25 km (FCC)
12 km (CE)
12 km (SRRC)
12 km (MIC)

Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminder on the DJI Pilot 2 app.

Max Transmission Distance (obstructed, with interference)

Strong Interference - City Centers (approx. 1.5-5 km)
Medium Interference - Suburban Areas (approx. 5-15 km)
Micro interference：Suburbs/Seasides (approx. 15-25 km)

* Data is tested under FCC standards in unobstructed environments of typical interference. Only to serve as a reference and provides no guarantee as to the actual flight distance.

Max Download Speed

20 MB/s

The above data was measured under conditions where the aircraft and remote controller were in close proximity without interference.

Lowest Latency

130 ms

Under near-field interference-free conditions, the Latency performance when shooting with a 1x lens.

Antennas

8 antennas, 2T4R

BATTERYCapacity

6741 mAh

Weight

401 g

Nominal Voltage

14.76 V

Max Charging Voltage

17.0 V

Type

Li-ion 4S

Energy

99.5 Wh

Charging Temperature

5°C to 40°C (41°F to 104°F)

GIMBALStabilisation

3-axis (tilt, roll, pan)

Mechanical Range

Gimbal Mechanical Limits:
Tilt: -140° to 113°
Roll: -52° to 52°
Pan: -65° to 65°
Soft Limits:
Tilt: -90° to 35°
Roll: -47° to 47°
Pan: -60° to 60°

Controllable Range

Tilt: ±-90° to 35°
Pan: Not controllable

Max Control Speed (tilt)

100°/s

Angular Vibration Range

±0.007°

DJI Care Enterprise Plus for the Matrice 4T provides comprehensive, one-year protection, offering unlimited, free repairs for accidental damages like water damage, collisions, and signal interference. It includes one Flyaway coverage, one factory maintenance service, and two free battery replacements per year to ensure maximum operational uptime.

How many versions does the DJI Matrice 4 Series have? What are the differences between them?DJI Matice 4 Series includes two versions - DJI Matrice 4T and DJI Matrice 4E.

DJI Matrice 4T is equipped with a 1/1.3-inch CMOS 48MP wide-angle camera, a 1/1.3-inch CMOS 48MP medium telephoto camera, a 1/1.5-inch CMOS 48MP telephoto camera, a thermal imaging camera, a nir auxiliary light, and a laser rangefinding module. It features thermal imaging perception and powerful night capturing capabilities.

The DJI Matrice 4E is equipped with a 4/3-inch CMOS 20MP wide-angle camera, a 1/1.3-inch CMOS 48MP medium telephoto camera, a 1/1.5-inch CMOS 48MP telephoto camera, and a laser range finding module, providing powerful imaging capabilities.

Is DJI Matrice 4 Series waterproof?No. Avoid contact with water during use as it may lead to damage of the device. If it rains during the flight, return and land as soon as possible, and wait until the aircraft is fully dry inside and out before using it again.

How do I activate DJI Matrice 4?When using DJI RC Plus 2 Enterprise Edition, for the first time, connect to the internet via Wi-Fi or a smartphone hotspot, and then follow the instructions on the remote controller to activate the device. After activating the DJI RC Plus 2 Enterprise Edition, use the DJI Pilot 2 app to connect the remote controller with the DJI Matrice 4 Series aircraft, and follow the prompts on the DJI Pilot 2 app interface to activate the aircraft.

What remote controllers are supported by the DJI Matrice 4 Series?The DJI Matrice 4 Series supports two remote controllers: DJI RC Plus 2 Enterprise Edition and DJI RC Plus 2 Enterprise Enhanced Edition. Among them, the DJI RC Plus 2 Enterprise Edition is the standard remote controller for the DJI Matrice 4 Series, while the DJI RC Plus 2 Enterprise Enhanced Edition needs to be purchased separately.

How to Charge the DJI Matrice 4 Series Battery?The DJI Matrice 4 Series batteries can only be charged using the DJI Matrice 4 Series Battery Charging Hub.
