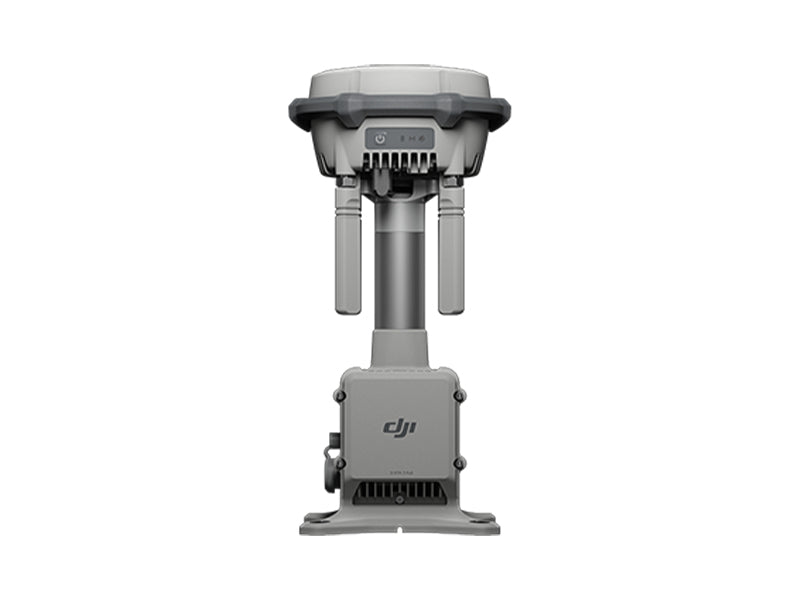

D-RTK 3 Relay Fixed Deployment Version
- Regular price $3,570.00
Dedicated relay station designed exclusively for DJI Dock 3
Extends communication range in obstructed operating environments
Supports centimeter-level RTK positioning for critical missions
Power-over-Ethernet simplifies permanent outdoor installation
IP67-rated enclosure supports continuous unattended operation
Remote relay access enables automatic aircraft connection
Optimized for fixed or semi-permanent deployments
Built for enterprise Dock-based drone operations
Vendor: DJI Shop
Type:
Sku: DJIDOCK3-02
Guarantee safe checkout
D-RTK 3 Relay Fixed Deployment Version
$3,570.00
DJI D-RTK 3 Relay Fixed Deployment Version for Dock 3: Fixed RTK relay station for extended Dock operations
The DJI D-RTK 3 Relay Fixed Deployment Version is a dedicated relay solution designed specifically for DJI Dock 3 operations in complex or obstructed environments. Operating exclusively in relay station mode, it bridges communication gaps between aircraft and Dock 3 while simultaneously supporting high-precision RTK positioning. Powered via Power-over-Ethernet, it connects directly to Dock 3 for streamlined installation and long-term outdoor deployment. With IP67 protection, wide operating temperature tolerance, and remote relay access capability, this fixed deployment version is built for continuous, unattended operation in a demanding enterprise environment
- 1x DJI D-RTK 3 Relay Fixed Deployment Version
GNSS Receiver
Supported Frequencies
- GPS: L1 C/A, L2C, L5
- BDS: B1I, B2I, B3I, B1C, B2a, B2b
- Galileo: E1, E5a, E5b, E6
- GLONASS: L1, L2
- QZSS: L1 C/A, L2C, L5
- L-Band: Supported
System Accuracy
Base Station Mode
- Single Point Accuracy (Uncalibrated):
Horizontal: 1.5 m (RMS)
Vertical: 3.0 m (RMS)
- Satellite-Based Differential:
Convergence Time: 20 mins
Horizontal: 30 cm (RMS)
Vertical: 40 cm (RMS)
- Network RTK Calibration:
Horizontal: 1.0 cm + 1 ppm
Vertical: 3.0 cm + 1 ppm
Rover Station Mode
- RTK Accuracy (Fixed Survey):
Horizontal: 0.8 cm + 1 ppm
Vertical: 1.5 cm + 1 ppm
- RTK Accuracy (Tilt Survey):
Angle Range: 0° to 60°
Horizontal: 8 mm + 0.7 mm/° tilt
Precise Point Positioning (PPP)
- Supported Frequencies: BDS B2b, Galileo E6, L-Band
- Convergence Time: 20 mins
- Horizontal: 30 cm (RMS)
- Vertical: 40 cm (RMS)
Accuracy depends on environmental conditions such as satellite visibility and interference.
Differential Data Transmission
- Supports RTCM v3.0, v3.1, v3.2, v3.3
- Supports MSM4, MSM5, MSM6, MSM7
- Records RTCM 3.2 raw data in DAT format
- Initialization Reliability: >99.9%
Video Transmission
- System: O4 Enterprise
- Frequencies:
Relay Mode: 2.4 / 5.2 / 5.8 GHz
Base Mode: 2.4 / 5.8 GHz
Rover Mode (BLE): 2.4 GHz
Transmitter Power
- 2.4 GHz: <33 dBm (FCC), <20 dBm (CE)
- 5.2 GHz: <23 dBm
- 5.8 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)
Bluetooth
- Version: 5.1
- Frequency: 2.4 GHz
- Power: <10 dBm
Transmission Distance
Base Station Mode
- D-RTK 3 to Matrice 400:
FCC: 40 km
CE/SRRC/JP: 20 km
- D-RTK 3 to other aircraft:
FCC: 15 km
CE: 8 km
Relay Mode
- Aircraft to relay: up to 25 km (FCC)
- Relay to controller: recommended ≤1 km
Rover Mode
- Up to 30 m (mobile devices)
With Interference
- Strong (city): 1.5–5 km
- Medium (suburban): 5–15 km
- Low (remote): 15–25 km
Antenna
- 4× OcuSync 4 directional antennas (2T4R)
- Reverse polarity SMA connector
Power & Electrical
- Relay: 14.5 W
- Base: 7 W
- Rover: 6.2 W
- Max with heating: 36.5 W
Power Supply
- USB-C (PD 3.0, 9–15V)
- PoE support (Fixed Version)
Battery
- Type: LiPo
- Capacity: 6500 mAh
- Energy: 46.8 Wh
Operating Time
- Relay: 4 hrs
- Base: 7 hrs
- Rover: 10 hrs
Physical Characteristics
- Operating Temperature: -20°C to 55°C
- Max Altitude: 6000 m
- Protection Rating: IP67
Dimensions
- Multifunctional: 163 × 89 mm
- Relay Fixed: 163 × 344 mm
Weight
- Multifunctional: 1.26 kg
- Relay Fixed: 2.24 kg
Note: Performance and accuracy depend on environment, interference, and usage conditions.
The DJI D-RTK 3 Relay Fixed Deployment Version is generally covered under standard DJI Enterprise warranty policies, which typically include a 1-year manufacturer warranty for the unit, covering defects in materials and workmanship. Detailed, specific warranty terms for fixed components should be verified directly with authorized dealers.DJI Ferntech +1
- Coverage: Centimeter-level positioning and signal relay exclusively for the DJI Dock 3.
- Warranty Type: Standard manufacturer warranty.
- Duration: Often 12 months for enterprise products, subject to local regulations.
- Support: Managed through DJI Enterprise channels and authorized service providers.
What is the DJI D-RTK 3 Relay Fixed Deployment Version used for?
It is a relay-only RTK station designed to extend communication and positioning support for DJI Dock 3 operations in complex environments.
Does the DJI D-RTK 3 Relay Fixed Deployment Version operate as a base station?
No. This version operates exclusively in relay station mode and does not support base or rover modes.
How is the DJI D-RTK 3 Relay Fixed Deployment Version powered?
It is powered via Power-over-Ethernet directly from DJI Dock 3 or supported third-party PoE sources.
Where can the DJI D-RTK 3 Relay Fixed Deployment Version be installed?
It can be installed on towers, rooftops, utility poles, parapet walls, and other elevated structures.
Is the DJI D-RTK 3 Relay Fixed Deployment Version suitable for outdoor use?
Yes. It features IP67 protection and is designed for continuous outdoor operation.
