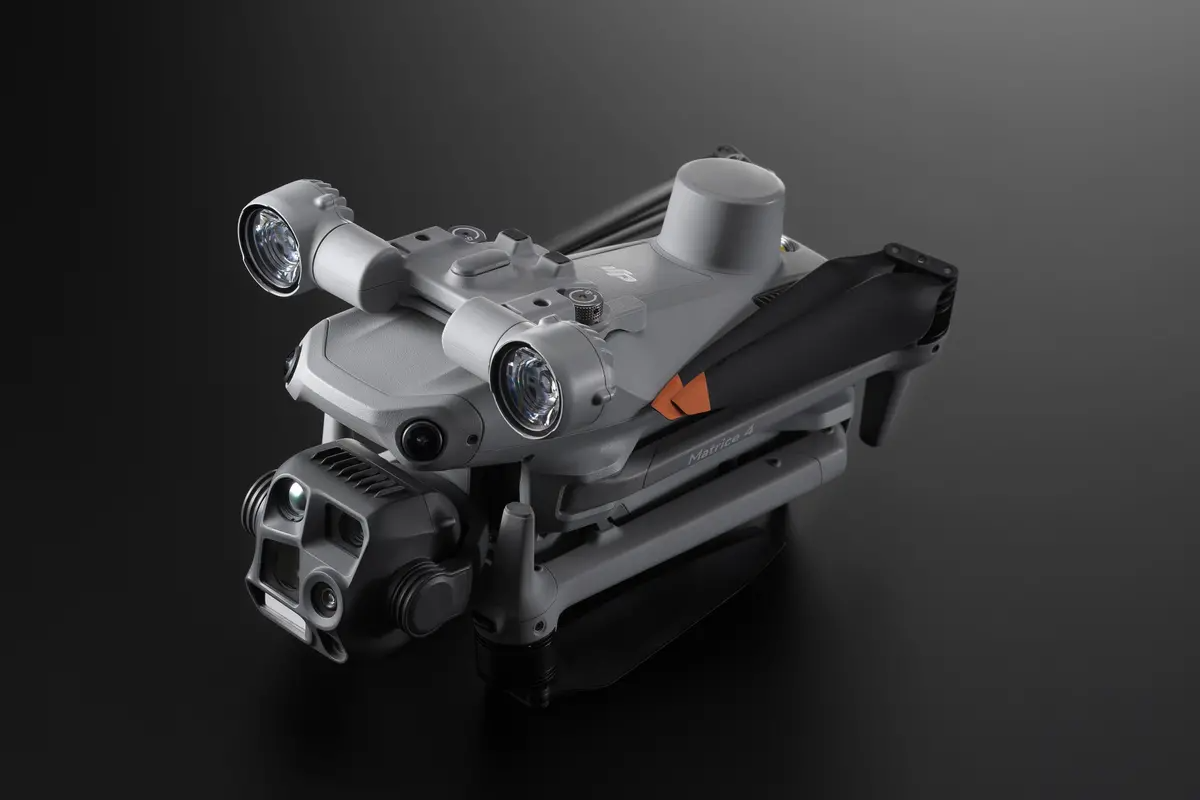

The DJI AL1 Spotlight supports two modes: always-on and strobe. It can clearly illuminate subjects even from a distance of 100 meters. Additionally, it can intelligently link with the gimbal, following the camera's movements to ensure the illuminated area matches the camera's view. It also offers a wide fov lighting mode, which can light up a broader area when in wide-angle mode. The spotlight and speaker can be used independently or in combination, meeting the needs of more operational scenarios.

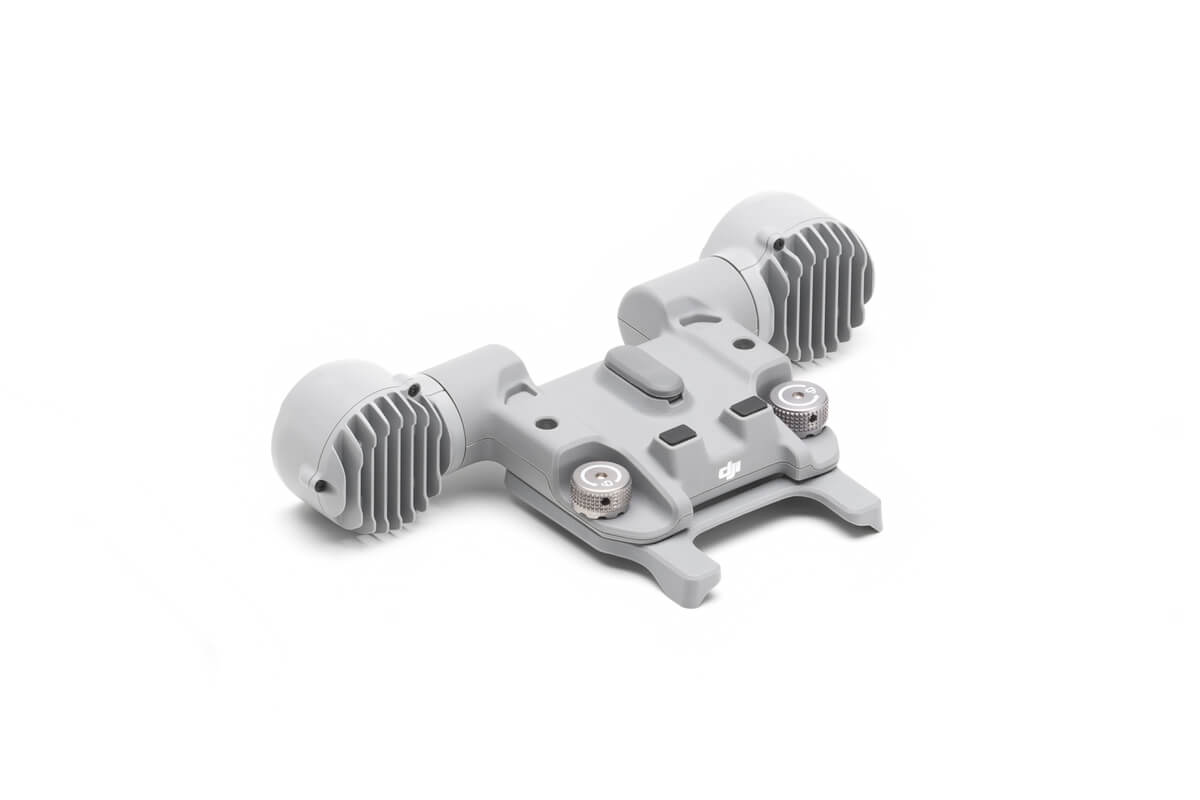

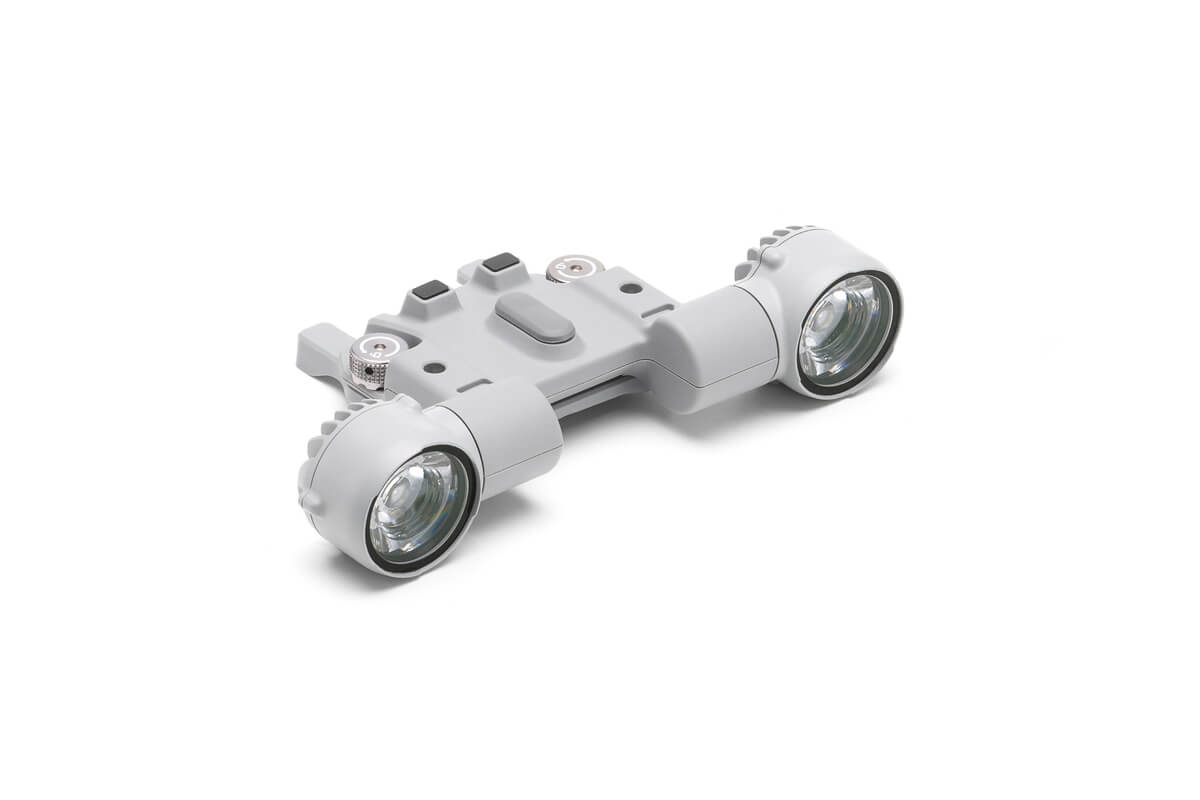

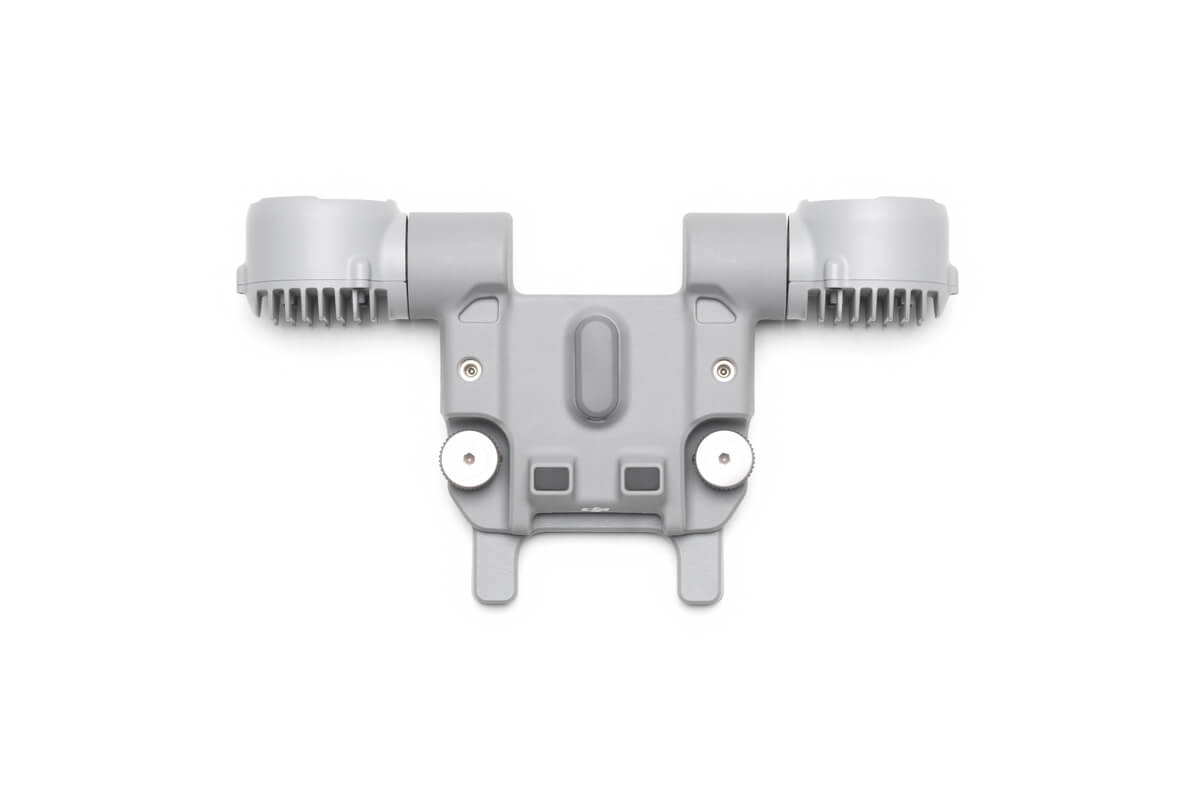

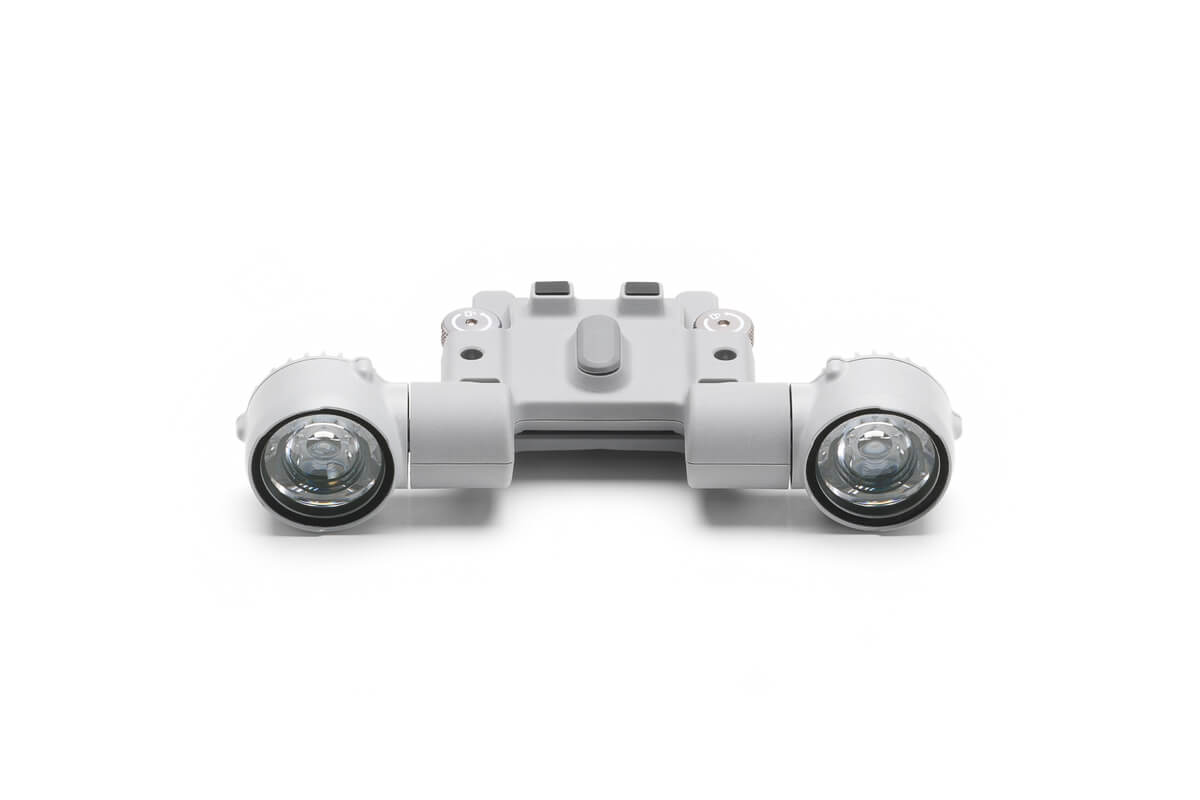

AL1 Spotlight
Weight:
91 g (excluding bracket)
Dimensions:
79×164×28 mm (L×W×H, excluding bracket)
Maximum Power: 32 W
Illuminance: 4.3±0.2 lux @ 100 meters, 17±0.2 lux @ 50 meters*
Effective Illumination Angle: 23°(10% relative illuminance)
Effective Illumination Area: 1,300 square meters @ 100 meters (10% relative illuminance, Normal Mode)
2,200 square meters @ 100 meters (10% relative illuminance, Wide FOV Mode)
Modes: Always-on and strobe
Gimbal Mechanical Range (Tilt): -140° to 50°
Gimbal Controllable Range (Tilt): -90° to 35°
Max Control Speed (tilt): 120°/s
Gimbal Alignment Accuracy: ±0.1°
Operating Temperature:-20° to 50° C (-4° to 122° F)
Mounting Method: Quick-release hand-tightened screws
Protection Rating: IP55 (with Matrice 4D Series)
Spotlight × 1
Spare Screw × 2
Hex Key × 1
